SpringAop------代理对象的创建（一）

发表于 更新于 阅读次数：
本文字数： 8.8k

简介

了解一下Aop中的目标对象和代理对象

测试代码（切面类和测试类在之前的aop基本使用中）

1
2
3
4
5
public class Application {
    public static void main(String[] args) {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext("com.yb");
        SpringAopTest springaoptest = (SpringAopTest) context.getBean(SpringAopTest.class);
}

首先，将@EnableAspectJAutoProxy注解注释掉，调试一下。

然后，加上@EnableAspectJAutoProxy注解，调试一下。

那么上面的就是目标对象，下面的就是代理对象。那么接下来就在调试中去探索一下这个代理对象是如何产生。

源码调试

1
AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext("com.yb");

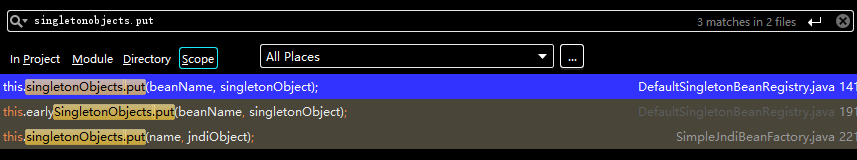

这行代码，了解spring的应该都是知道是用来初始化ioc容器，里面有个beanFactory，其中有个叫SingletonObjects,也就是所谓的单例池，里面就是保存所有的单例bean对象。其本质就是一个map，当我们调用getBean()时，就是从这个map中去查找，那么既然有get，那么肯定在实例化bean的时候有个，put的方法将这个bean放到这个map中。那么就查找一个是否存在一个SingletonObjects.put（）这个方法。（ctrl+shift+f）全局查找，结果如下：

,根据方法名和参数，可以判断是第一个。
1
2
3
4
5
6
7
8
protected void addSingleton(String beanName, Object singletonObject) {
  synchronized (this.singletonObjects) {
    this.singletonObjects.put(beanName, singletonObject);
    this.singletonFactories.remove(beanName);
    this.earlySingletonObjects.remove(beanName);
    this.registeredSingletons.add(beanName);
  }
}

此时，我们在this.singletonObjects.put(beanName, singletonObject);出打个断点，并且加上断点条件————“springAopTest”.equals(beanName)（否则其他不相干的bean也会调用此方法），重新开始调试。

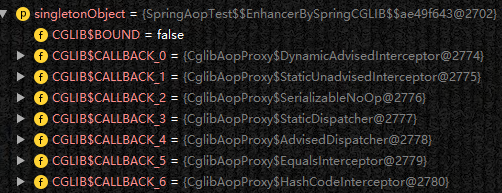

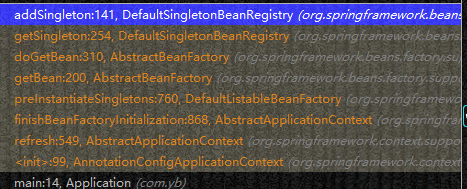

从上面的可以发现，此时的springAopTest确实已经是代理对象了，那么可以根据方法调用栈一步一步往前找。

getSingleton（其他本次调试无关的我都删了昂）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
		Assert.notNull(beanName, "Bean name must not be null");
		synchronized (this.singletonObjects) {
			Object singletonObject = this.singletonObjects.get(beanName);
			if (singletonObject == null) {
				beforeSingletonCreation(beanName);
				boolean newSingleton = false;
				boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
				if (recordSuppressedExceptions) {
					this.suppressedExceptions = new LinkedHashSet<>();
				}
				try {
					singletonObject = singletonFactory.getObject();
					newSingleton = true;
				}
				finally {
					if (recordSuppressedExceptions) {
						this.suppressedExceptions = null;
					}
					afterSingletonCreation(beanName);
				}
				if (newSingleton) {
					addSingleton(beanName, singletonObject);
				}
			}
			return singletonObject;
		}
	}

当执行完Object singletonObject = this.singletonObjects.get(beanName);时，可发现此时singletonObject是null,说明此时的singletonObjects中没有代理对象的（此时肯定没有啊，因为都没有调用put方法，哈哈哈哈），继续，当执行完singletonObject = singletonFactory.getObject();后，发现，此时代理对象出现了。那么继续看看这个singletonFactory.getObject()方法。

doGetBean

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
			@Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {
                //......
				// Create bean instance.
				if (mbd.isSingleton()) {
					sharedInstance = getSingleton(beanName, () -> {
						try {
							return createBean(beanName, mbd, args);
						}
						catch (BeansException ex) {
							// Explicitly remove instance from singleton cache: It might have been put there
							// eagerly by the creation process, to allow for circular reference resolution.
							// Also remove any beans that received a temporary reference to the bean.
							destroySingleton(beanName);
							throw ex;
						}
					});
					bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
				}
        //......
		return (T) bean;
	}

这里的getSinleton(beanName,()->{}),里面是个Lambda表达式代替的匿名类

1
2
3
4
5
6
new ObjectFactory(){
  @override
  getObject(){
    //...
  }
}

看这名字creatbean，感觉应该是在这里没错了。调试一下看看

createBean

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
			throws BeanCreationException {

	//......
		try {
			// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
			Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
			if (bean != null) {
				return bean;
			}
		}
		catch (Throwable ex) {
			throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
					"BeanPostProcessor before instantiation of bean failed", ex);
		}

		try {
			Object beanInstance = doCreateBean(beanName, mbdToUse, args);
			if (logger.isDebugEnabled()) {
				logger.debug("Finished creating instance of bean '" + beanName + "'");
			}
			return beanInstance;
		}
		catch (BeanCreationException ex) {
			// A previously detected exception with proper bean creation context already...
			throw ex;
		}
		catch (ImplicitlyAppearedSingletonException ex) {
			// An IllegalStateException to be communicated up to DefaultSingletonBeanRegistry...
			throw ex;
		}
		catch (Throwable ex) {
			throw new BeanCreationException(
					mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
		}
	}

看下 Object bean = resolveBeforeInstantiation(beanName, mbdToUse); 上的注释：// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.给BeanPostProcessors（后置处理器）一个机会来返回一个代理对象代替目标对象。感觉好像是在这里生成代理对象的，但是执行之后发现bean居然是null，怎么肥四，就先继续往下走叭，当走到 Object beanInstance = doCreateBean(beanName, mbdToUse, args);时，发现代理对象出现了。

doGetBean (和之前的那个不一样)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args)
			throws BeanCreationException {

		// Instantiate the bean.
		BeanWrapper instanceWrapper = null;
		if (mbd.isSingleton()) {
			instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
		}
		if (instanceWrapper == null) {
			instanceWrapper = createBeanInstance(beanName, mbd, args);
		}
		final Object bean = instanceWrapper.getWrappedInstance();
		Class<?> beanType = instanceWrapper.getWrappedClass();
		if (beanType != NullBean.class) {
			mbd.resolvedTargetType = beanType;
		}

		// Initialize the bean instance.
		Object exposedObject = bean;
		try {
			populateBean(beanName, mbd, instanceWrapper);
			exposedObject = initializeBean(beanName, exposedObject, mbd);
		}
		catch (Throwable ex) {
			if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
				throw (BeanCreationException) ex;
			}
			else {
				throw new BeanCreationException(
						mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
			}
		}
		return exposedObject;
	}

instanceWrapper = createBeanInstance(beanName, mbd, args);这里创建了目标对象实例，instanceWrapper.getWrappedInstance()获取目标对象，一直到 exposedObject = initializeBean(beanName, exposedObject, mbd);这里才出现了代理对象。

initializeBean

1
2
3
4
5
6
protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
  if (mbd == null || !mbd.isSynthetic()) {
    wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
  }
  return wrappedBean;
}

执行了applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName)后出现了代理对象

applyBeanPostProcessorsAfterInitialization

1
2
3
4
5
6
7
8
9
10
11
12
13
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
			throws BeansException {

		Object result = existingBean;
		for (BeanPostProcessor beanProcessor : getBeanPostProcessors()) {
			Object current = beanProcessor.postProcessAfterInitialization(result, beanName);
			if (current == null) {
				return result;
			}
			result = current;
		}
		return result;
	}

这个方法里主要是遍历后置处理器。并且执行其中的postProcessAfterInitialization方法，其中有很多的后置处理器，到底执行的是哪一个呢？（查了一下是AnnotationAwareAspectJAutoProxyCreator这个后置处理器）
它是从@EnableAspectJAutoProxy中@Import(AspectJAutoProxyRegistrar.class)，其中有个registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);的方法

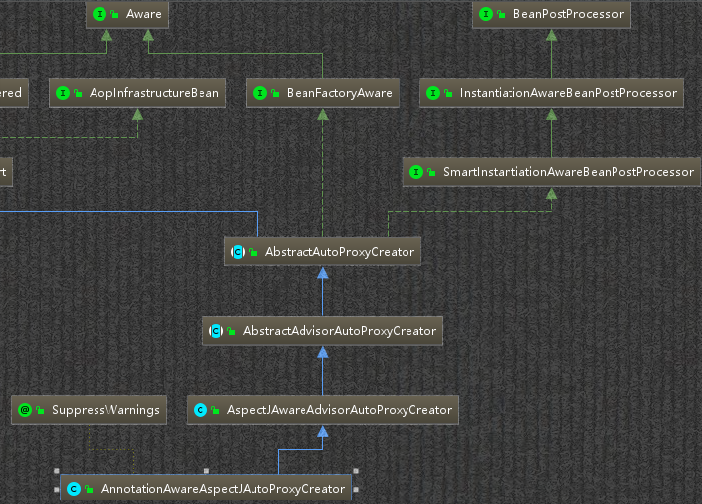

这里可以发现AnnotationAwareAspectJAutoProxyCreator确实是一个后置处理器。发现这个类中并没有postProcessAfterInitialization方法，然后在其父类（AbstractAutoProxyCreator）中找到了

1
2
3
4
5
6
7
8
9
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) throws BeansException {
  if (bean != null) {
    Object cacheKey = getCacheKey(bean.getClass(), beanName);
    if (!this.earlyProxyReferences.contains(cacheKey)) {
      return wrapIfNecessary(bean, beanName, cacheKey);
    }
  }
  return bean;
}

进入此方法中，发现其中有个createProxy方法，代理对象就是在这里创建的

1
2
3
4
5
6
7
8
9
// Create proxy if we have advice.
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
if (specificInterceptors != DO_NOT_PROXY) {
  this.advisedBeans.put(cacheKey, Boolean.TRUE);
  Object proxy = createProxy(
      bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
  this.proxyTypes.put(cacheKey, proxy.getClass());
  return proxy;
}
